ADL5330ACPZ-REEL7
Manufacturer:
Analog Devices
Mfr.Part #:
ADL5330ACPZ-REEL7
Datasheet:
Description:

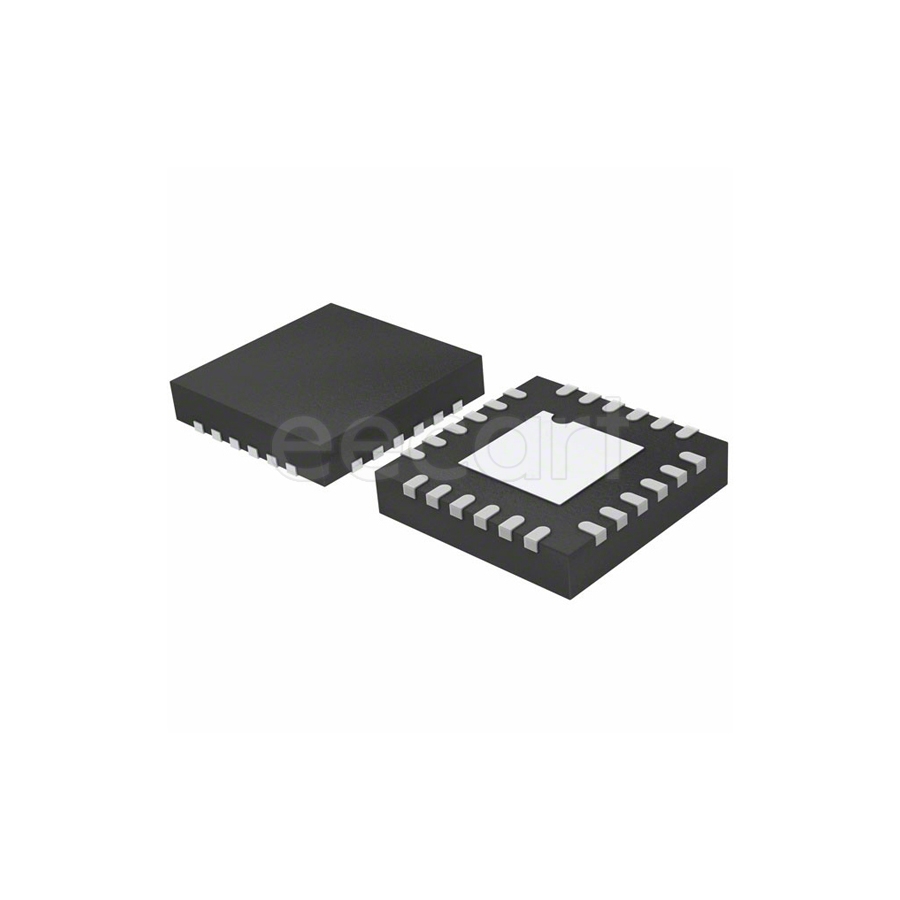

RF - Amplifiers LFCSP-24 SMD/SMT
| Parameter | Value |
|---|---|
| Length | 3.75 mm |
| Width | 4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Packaging | Reel |
| Thickness | 0.85 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Frequency | 3 GHz |
| Current | 250 mA |
| Test Frequency | 2.7 GHz |
| Operating Supply Voltage | 5.25 V |
| Lifecycle Status | Production (Last Updated: 3 days ago) |
| Max Power Dissipation | 1.1 W |
| Max Supply Voltage | 5.25 V |
| Min Supply Voltage | 4.75 V |
| Power Dissipation | 1.1 W |
| Number of Channels | 1 |
| Operating Supply Current | 215 mA |
| -3db Bandwidth | 3 GHz |
| Gain | 47 dB |
| Noise Figure | 14.7 dB |
| P1dB | 1.2 dBm |
| Max Frequency | 3 GHz |
| Nominal Supply Current | 215 mA |
| Gain Bandwidth Product | 3 GHz |
| Schedule B | 8542330000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 3 days ago) |
| RF Type | Cellular, CDMA2000, W-CDMA, GSM |
Stock: 4
Distributors
pcbx
pcbxUnit Price$12.52493
Ext.Price$12.52493
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $12.52493 | $12.52493 |
| 10 | $11.97082 | $119.70820 |
| 25 | $11.03464 | $275.86600 |
| 50 | $10.17168 | $508.58400 |
| 100 | $9.37612 | $937.61200 |
